OVERVIEW
The 3500 System provides continuous, online monitoring suitable for machinery
protection applications, and is designed to meet the requirements of the American
Petroleum Institute’s API 670 standard for such systems.

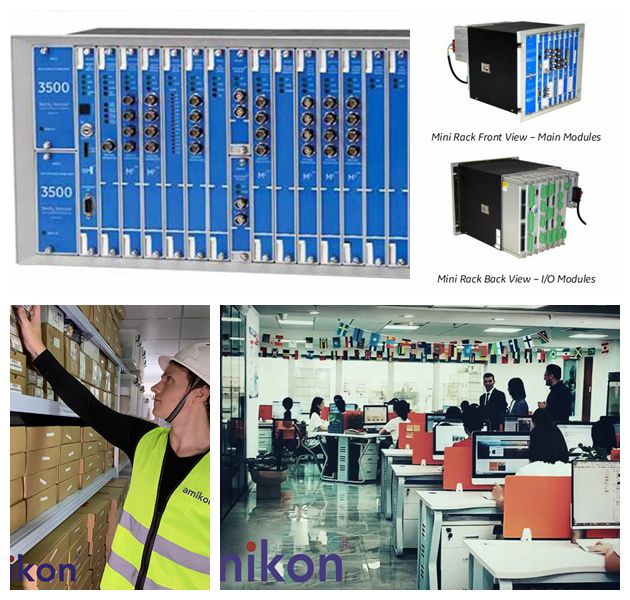

The system’s modular rack-based design includes the following components:
• 3500/05 Instrument Rack (required)• One or two 3500/15 Power Supplies (required)
• 3500/22M Transient Data Interface (TDI) Module (required)
• One or more 3500/XX Monitor Modules (required)
• One or more 3500/32M (4-channel) or 3500/33 (16-channel) Relay Modules (optional)
• One or two 3500/25 Keyphasor* Modules (optional)
• One or more 3500/92 Communication Gateway Modules (optional)
• Input/Output (I/O) Modules (required)
• 3500/94M VGA Display (optional)
• Internal or external intrinsic safety barriers, or galvanic isolators for hazardous area installations (optional)
• 3500 System Configuration Software (required)
RELATED ITEMS
| BENTLY NEVADA | |||
| 3500/15 133292-01 | 133300-01 | 129478-01 | 330180-91-05 |
| 3500/22M 288055-01 | 146031-01 | 126648-01 | 330180-91-00 |
| 3500/25 149369-01 | 133819-01 | 149992-01 | 330106-05-30-10-02-05 |
| 3500/32 149986-02 | 125720-02 | 135137-01 | 330106-05-30-05-02-05 |
| 3500/33 149986-02 | 149992-01 | 125768-01 | 330106-05-30-10-02-00 |
| 3500/40 176449-01 | 125680-01 | 125760-01 | 330105-02-12-05-02-00 |
| 3500/42 176449-02 | 128229-01 | 3300/20 | 330703-000-040-10-11-00 |
More.....sales2@amikon.cn (Click! )
BACKGROUND
GE Bently Nevada is a wholly owned subsidiary of GE, a US-based company that maintains
offices in several countries around the world.The affected product,
GE Bently Nevada 3500/22M, is a vibration monitoring system. According to GE, the GE Bently
Nevada 3500/22M is deployed across several sectors includingChemical and Energy.
GE estimates that these products are used worldwide.
